UDECX is a revolutionary modular and portable outdoor flooring and decking system that is ultra-low maintenance with practically unlimited configuration and commercial application possibilities.

The UDECX surface is composed of standardized 40-inch square pads. Pads are place on top of piers and locked into place with a simple hand tool. Shims and risers enable the system to be leveled on uneven terrain.

The surface pads are made of composite material to ensure strength and durability and feature a non-slip synthetic wood grain texture. The pads support 100lbs per square foot. UDECX offers a 15-year manufacturer’s warranty and our products are proudly made 100% in the U.S.A and many of the components of the system are made from recycled materials.

UDECX configurations are amazing simple to implement. Simply place the UDECX support piers into position (using a UDECX-provided template), place the pads on the piers and secure the pads onto the piers with cam locks using the UDECX hand tool. Beyond the hand tool, a shovel, level and hammer are all that may be needed. It’s just that simple.

UDECX system

UDECX system

UDECX IS LIKE LEGO®

Using the basic component (pads) unlimited configurations can be created with practically unlimited applications.

The modular design allows for the relocation, reconfiguration or expansion  of the system with ease, so the UDECX system can be easily adapted and changed to meet changing needs or requirements over time.

No application in the residential, retail or construction industry is too big or small for the UDECX system

REUSABLE – When one application is completed, use the components for the next project
AMAZING cost savings over time!
USE ANYWHERE that a permanent or temporary outdoor surface is needed

Here are just some of the applications that are ideally suited for UDECX

  • + -

    Home Applications

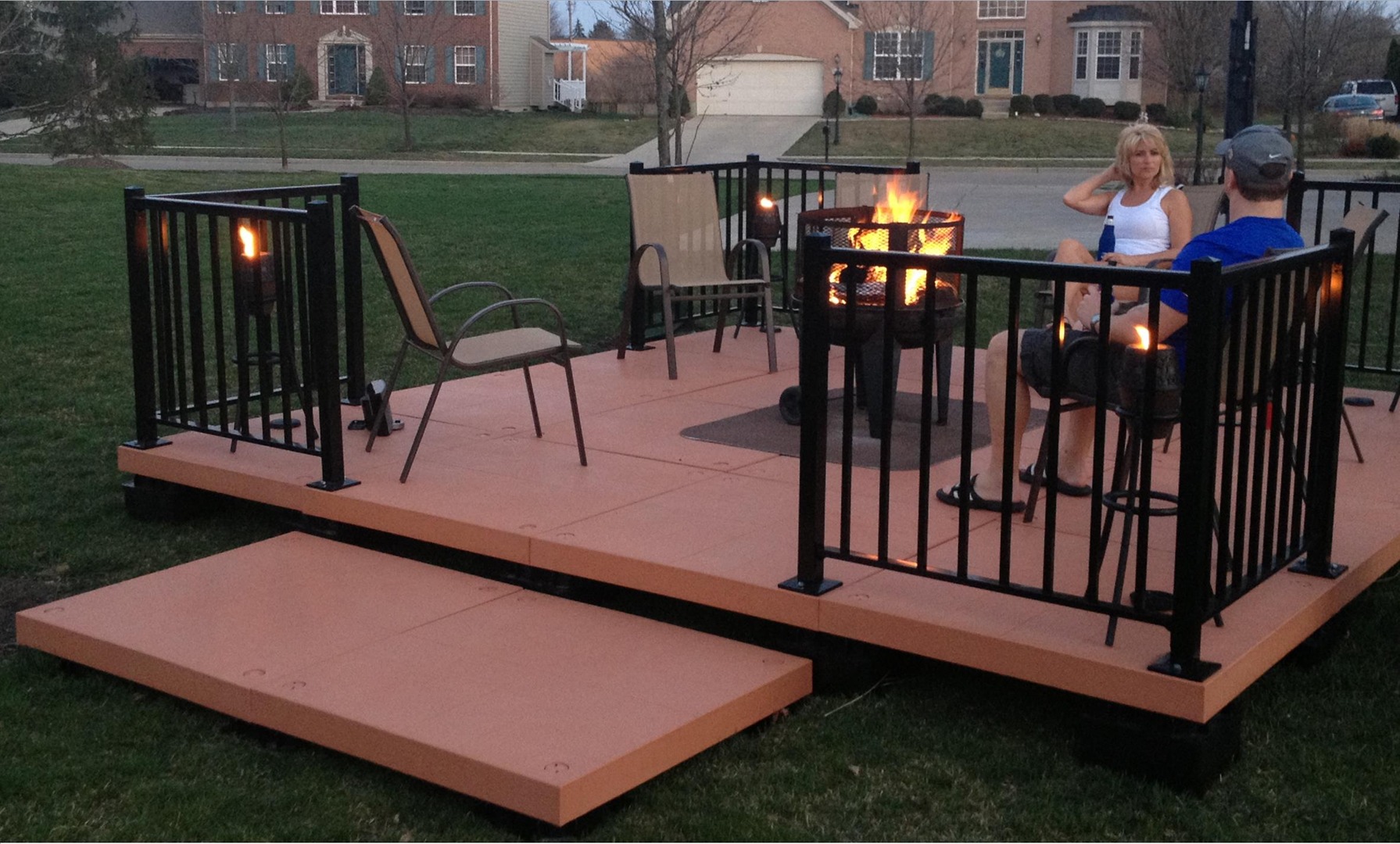

    Patio deck

    1. Outdoor patio/deck

    2. Shed flooring

    3. Sidewalk/Walkway

    4. Pad for trash containers and yard waste

    5. Condensing unit pad

    6. Pool pump pad

  • + -

    Construction Site:

    1. Temporary sidewalk. Reuse, Relocate and Reconfigure as needed.

    2. Connect buildings

    3. Temporary decking

  • + -

    Apartments and Apartment Complex:

    patio floor tiles

    1. Playground surface

    2. Outdoor patio surface

    3. Sidewalk

    4. First floor decks/patios





  • + -

    Restaurants:

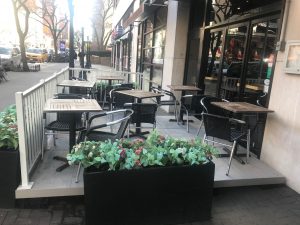

    restaurant install

    1. Outdoor dining patios – permanent or temporary

    2. Temporary floor for special events







  • + -

    Modular Buildings, Temporary Sites/Shelters and Tents:

    patio floor tiles

    1. Flooring system – perfect for temporary use and disaster response applications

    2. Expanding outdoor spaces (patio, eating area, etc.)

    3. Connect buildings (sidewalk, walkway)

See how simple it is to install UDECX in this video

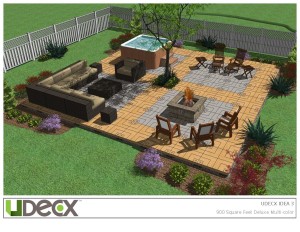

Visit our Design Center page for ideas and inspiration. Once you’ve decided what you want, the next step is to contact a UDECX representative at 877-698-3329 or email UDECX for more information and purchasing information.

Click on the images for an expanded view of the components of the UDECX system and download specs.

FLINT GREY SURFACE PAD

FLINT GREY SURFACE PAD

Download specs

RED CEDAR SURFACE PAD

RED CEDAR SURFACE PAD

Download specs

UDECX STRUCTURAL PIER

UDECX STRUCTURAL PIER

Download specs

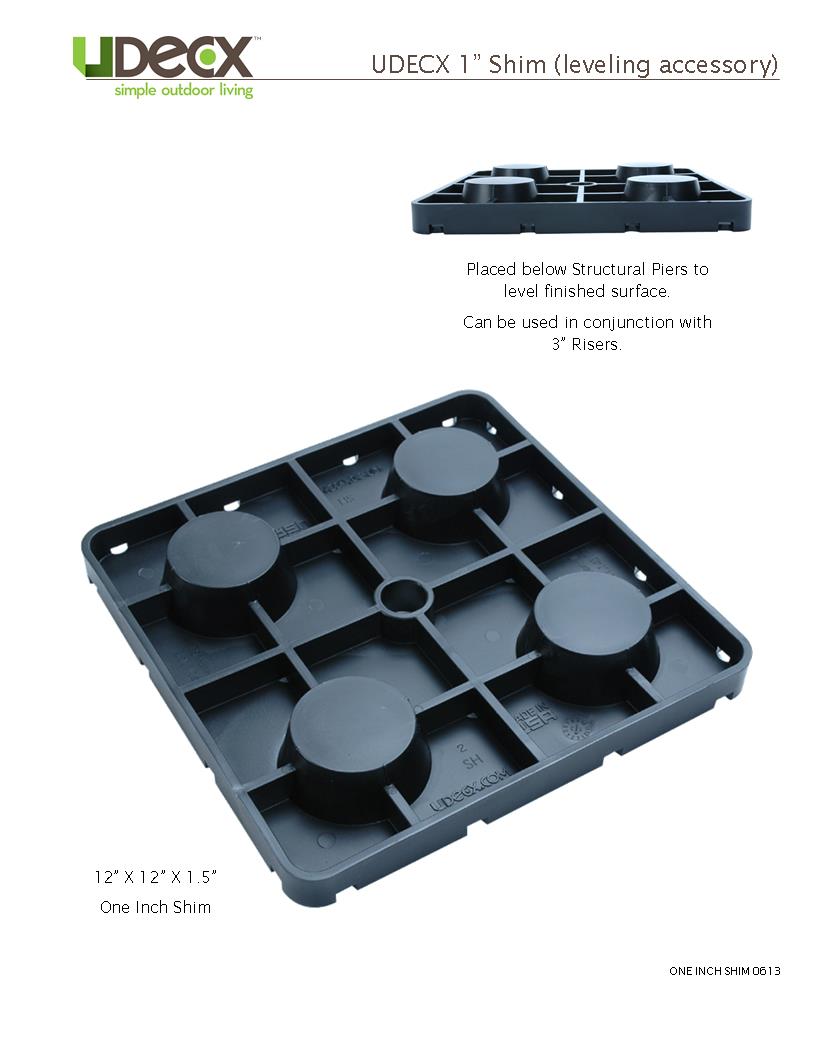

UDECX 1-INCH SHIM (LEVELING ACCESSORY)

UDECX 1-INCH SHIM (LEVELING ACCESSORY)

Download specs

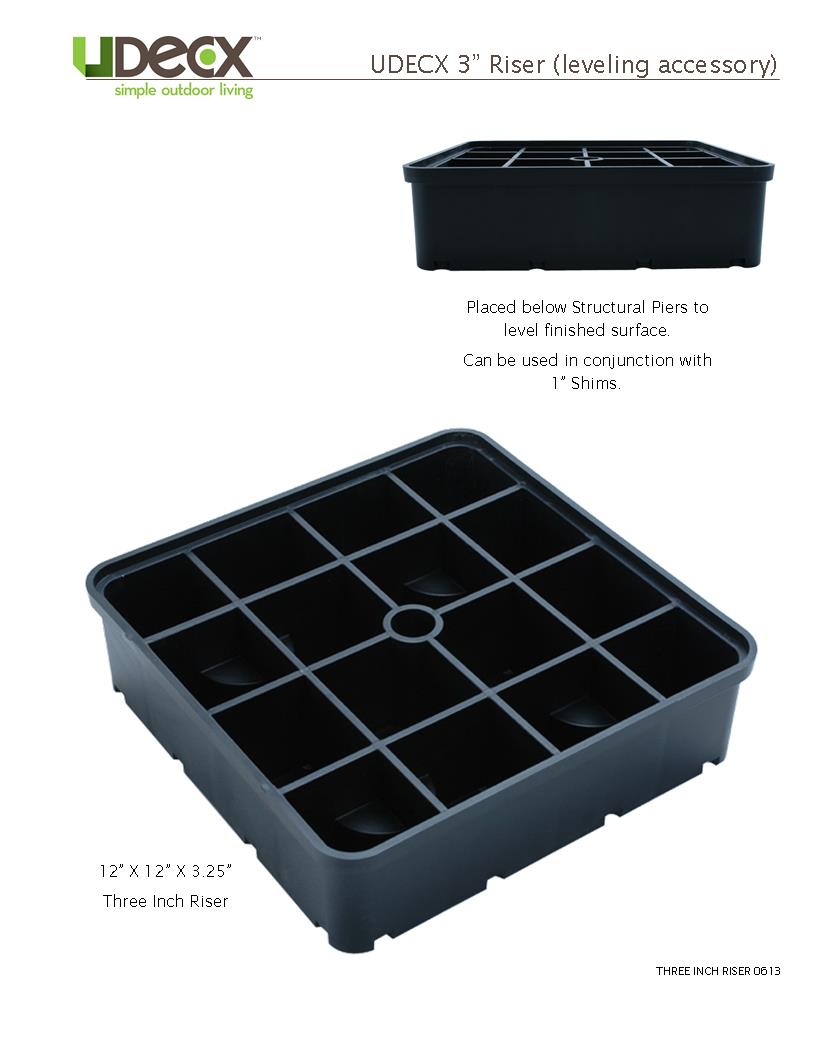

UDECX 3-INCH RISER (LEVELING ACCESSORY)

UDECX 3-INCH RISER (LEVELING ACCESSORY)

Download specs

UDECX 18-INCH ANCHOR SPIKE

UDECX 18-INCH ANCHOR SPIKE

Download specs

UDECX CORNER POST

UDECX CORNER POST

Download specs

UDECX END POST

UDECX END POST

Download specs

UDECX IN-LINE POST

UDECX IN-LINE POST

Download specs

UDECX 32-INCH (SHORT) RAILING SECTION

UDECX 32-INCH (SHORT) RAILING SECTION

Download specs

UDECX 38-INCH (LONG) RAILING SECTION

UDECX 38-INCH (LONG) RAILING SECTION

Download specs

UDECX CAM LOCK TOOL

UDECX CAM LOCK TOOL

Download specs

DOWNLOAD INSTALLATION GUIDE (5mb pdf)
